SQ710 medical gauze loom machine manufacturer and supplier

Product



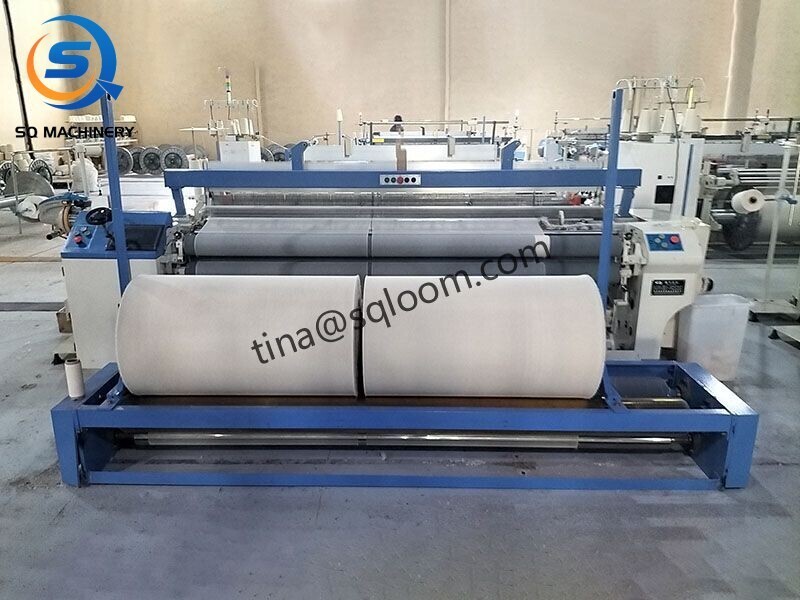

SQ710 low price high speed medical gauze loom

Features

medical gauze weaving machine-air jet loom
fabric width 90cm-120cm or customized size
output 2000-3000m per 24 hours

Product Details

High speed medical gauze weaving machine

air jet loom

excellent speed and quality

the warp yarn no need sizing,simple process for gauze production.

Applicable yarn	100% Cotton yarn
Thread (inch)	Warp density 10-35EPI Weft density 6-30PPI
Reed width cm	190,210,230,260,280,300,340,360
Shedding motion	Tapped shedding( plain)
Heald frame	2pcs/4pcs
Weft feeder	1/2
Let-off/Take-up	electronic/mechanical
Fabric edge	Tuck-in or Selvdge
Warp beam	Flange dia.800mm
Take-up	Wind on loom(max roller dia.650mm) wind on batching motion(max.roller dia.1200mm)
