Medical gauze making machine SQ710

Features

High speed medical gauze making machine
Output 2000-3000m per day for gauze roll in width 90cm
Working stable and high efficiency 99%,low maintainess cost,
high speed 700 RPM.

Product Details

Gauze making machine

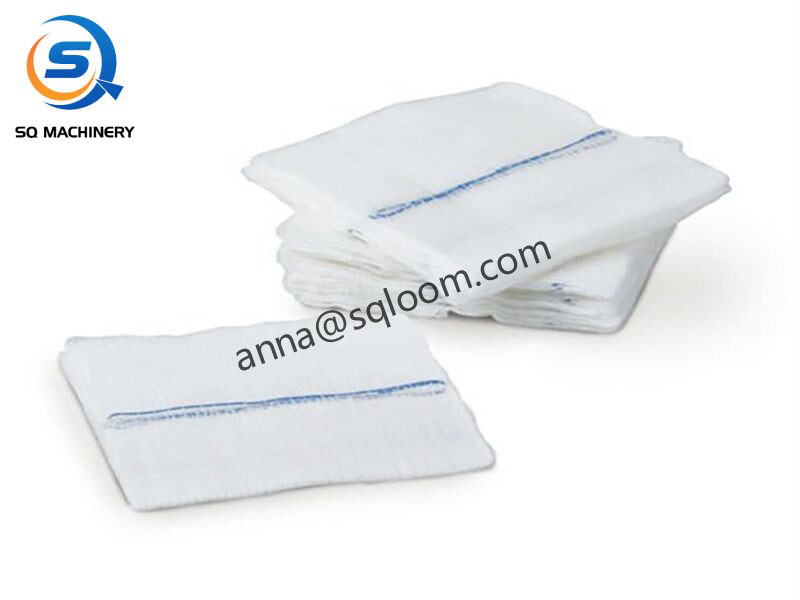

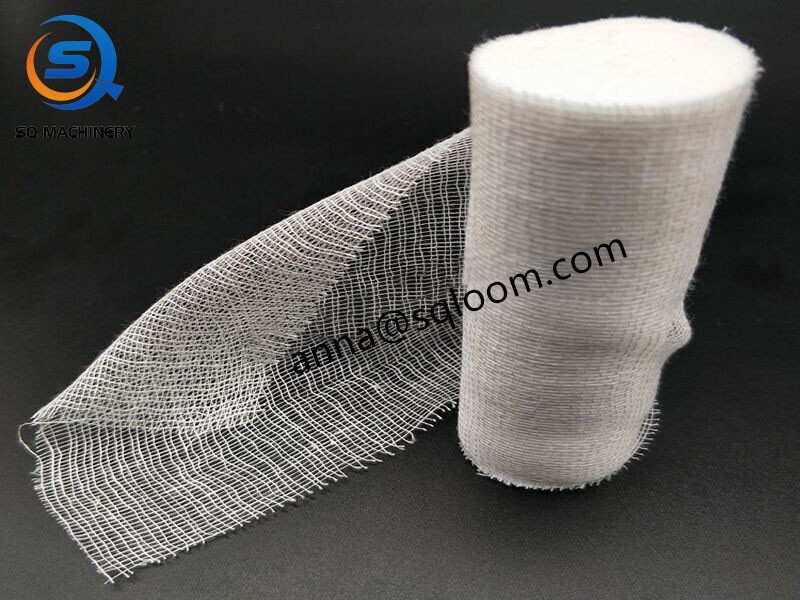

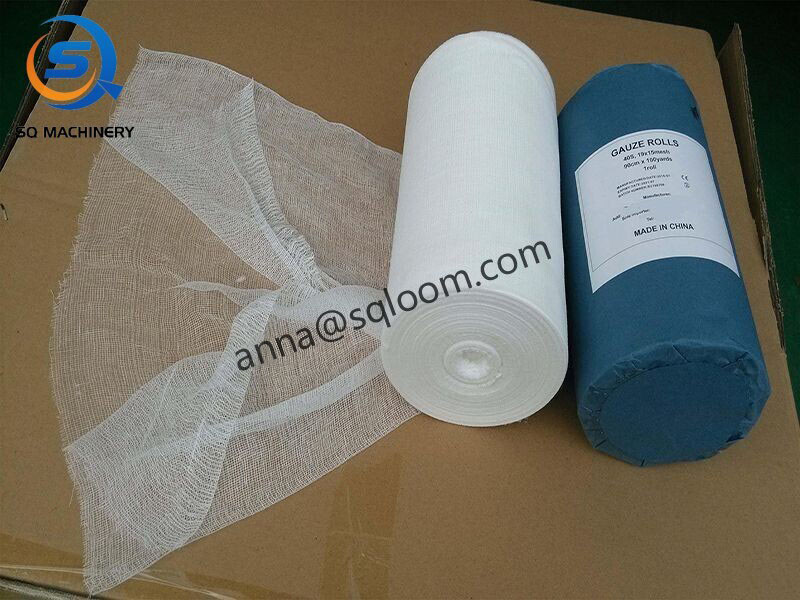

To produce Medical gauze,gauze bandage,Industrial gauze,absorbent gauze.The machine widely used in gauze bandage manufacturer.

Exported to Uzbekistan,Russia,Vietname,India,Ethiopia,Sudan,Sri Lank,Pakistan.

Gauze making machine Main Specification

Applicable yarn	Cotton yarn O/E 12-40 R/S 30-45
Thread (inch)	Warp density 10-35EPI Weft density 6-30PPI (the cotton yarn no need sizing treatment)
Reed width	210cm 230cm 280cm 340cm (optional)
Shedding motion	Tapped shedding( plain)
Heald frame	2pcs
Weft feeder	2/1(up to buyer's demand)
Let-off	electronic/mechanical
Take-up	electronic/mechanical
Warp beam	Dia.800mm
Take-up	Wind on loom(max roller dia.650mm)wind on batching motion(max.roller dia.1200mm)
