Usage scope

The machine is suitable for sectional warping various kinds of yarns,including worsted yarn,high twisted flaments,yarn for colorwoven fabric,for silk fabric,for toweling fabric and fabric in special industry.This machine,which can match water-jet,air-jet,rapier and projectile loom,is the equipment for preparation before weaving.

Main specification

Main technical features

1 With high speed, large package,driven by AC motor directly,frequency control speed, constant winding and rebeaming at stepless speed change.

2 The whole executing system consists of industrial computer PLC,grating rotary encoder and servo motor to detect and test the displacement of warp yarn climbing with a stable and reliable performance, high accuracy displacement and qood forming warp.

3 Closed loop control system of microcomputer and grating rotary encoder to realize direct metering length, batch, hank and speed detecting.

4 High strength thin wall steel drum with high precision servo motor to control the warping machine, can satisfy all kinds of warping process.

5 Adopting gas-liquid conversion mechanism and muzzle brakes efficient braking, which produces damping tension for rebeaming, can be set stepless speed adjustment according to the demands.

6 with high precision ball bearing guide screw and linear guide rail, to ensure the accuracy of the displacement.

7 Warping machine and operation desk shifted by bal bearing bars separately to ensure no change displacement during operation

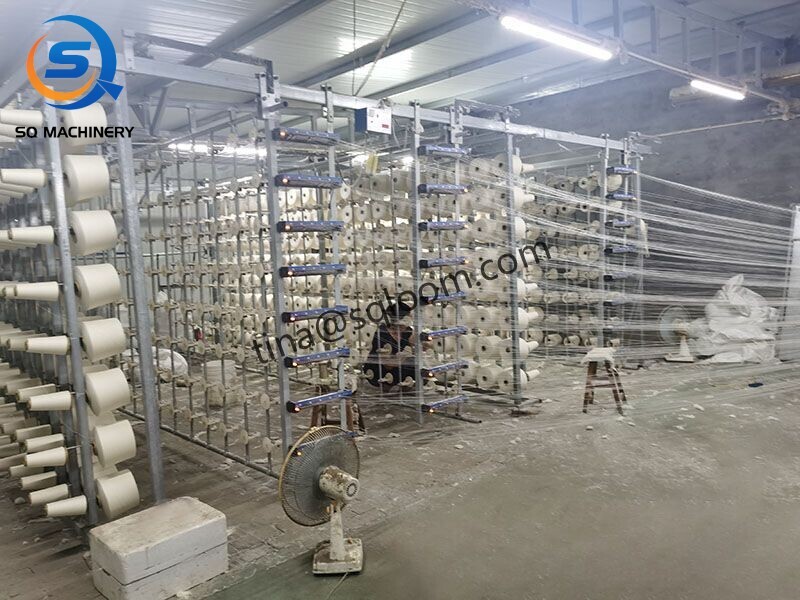

8 .Equipped with rectangular tilting bobbin creel, collective bobbin changing inside (outside) lead thread. to adopt totally enclosed infrared end breakage detection device,it is sensitive and reliable.

9 Adopt touch screen,easy to operate,and can display the fault online,and with self-diag-nosisfunction.

10 The machine can be equipped with a variety of auxiliary equipment: oiling for hank g (wax), solid wax for hank, oiling for yarn (wax), and electrostatic eliminator,etc

11 Can be equipped printer for printing process card and production statistics

12.Remote monitoring can be performed,and convenient maintenance

13.Main electrical parts imported, any choice according to customers demands.
