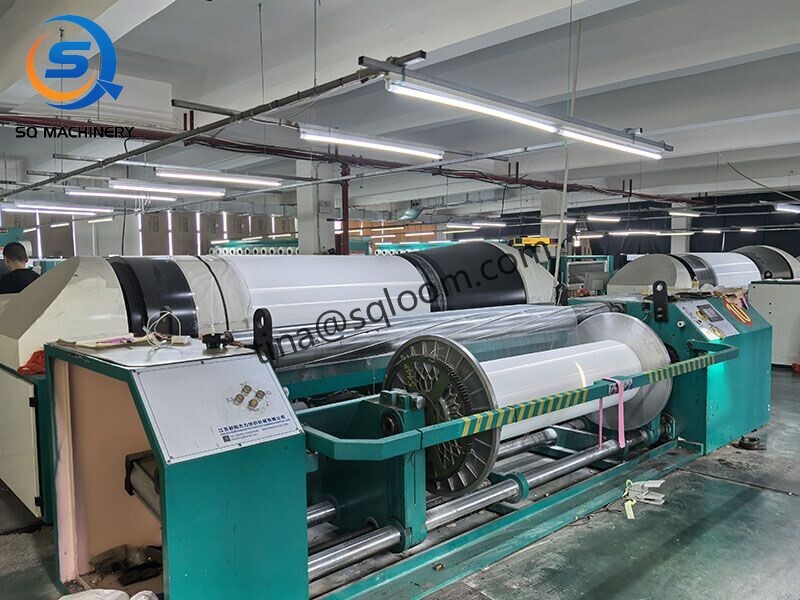

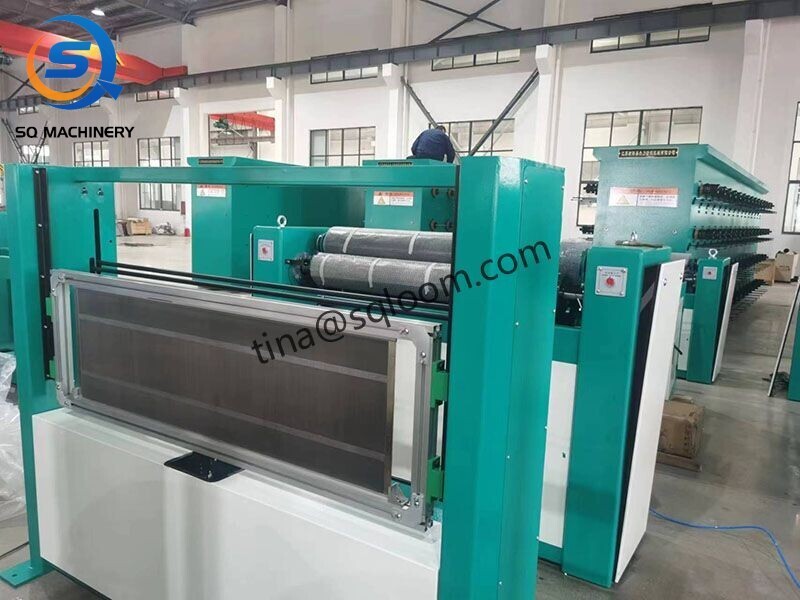

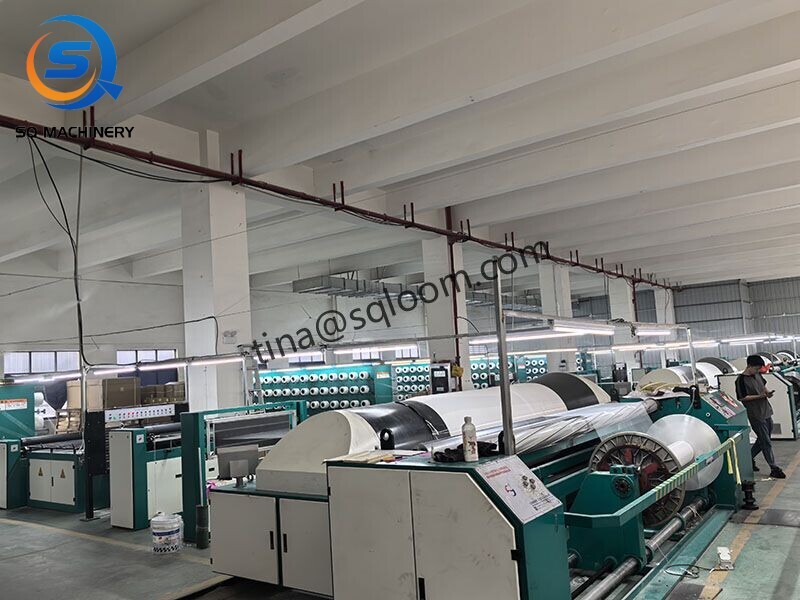

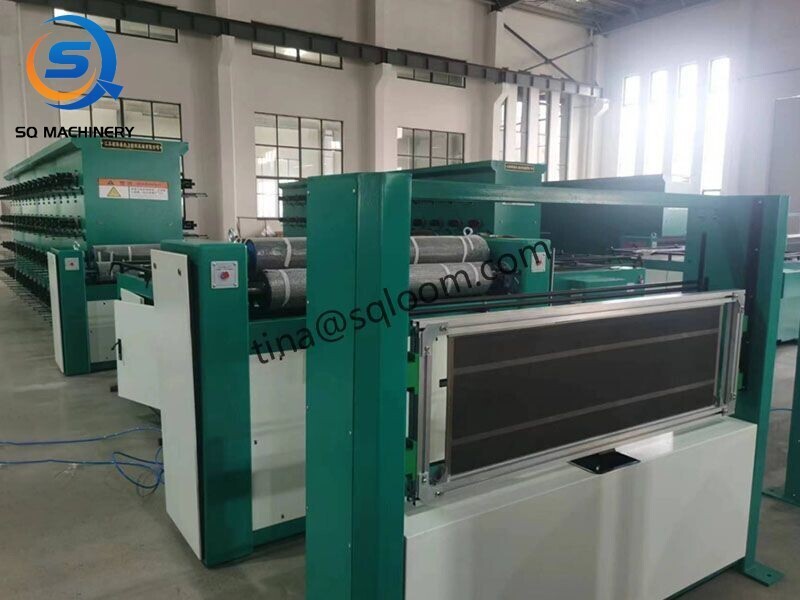

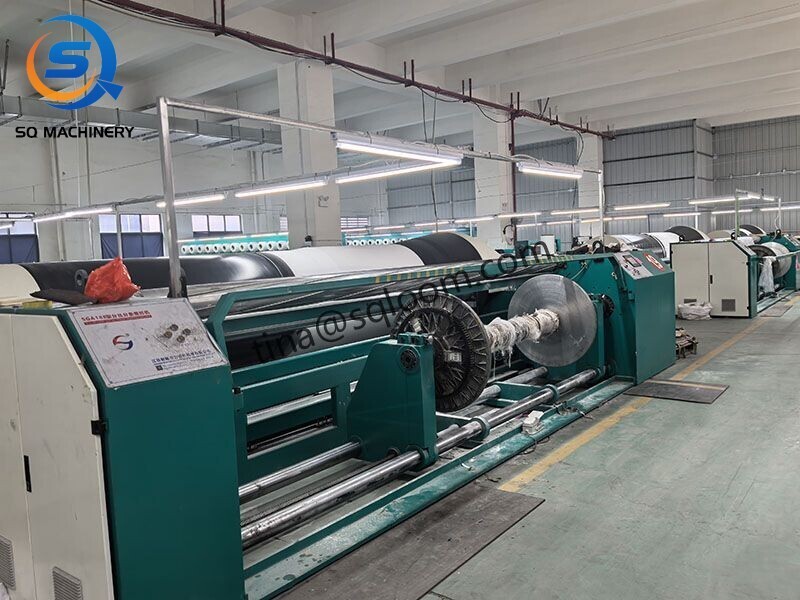

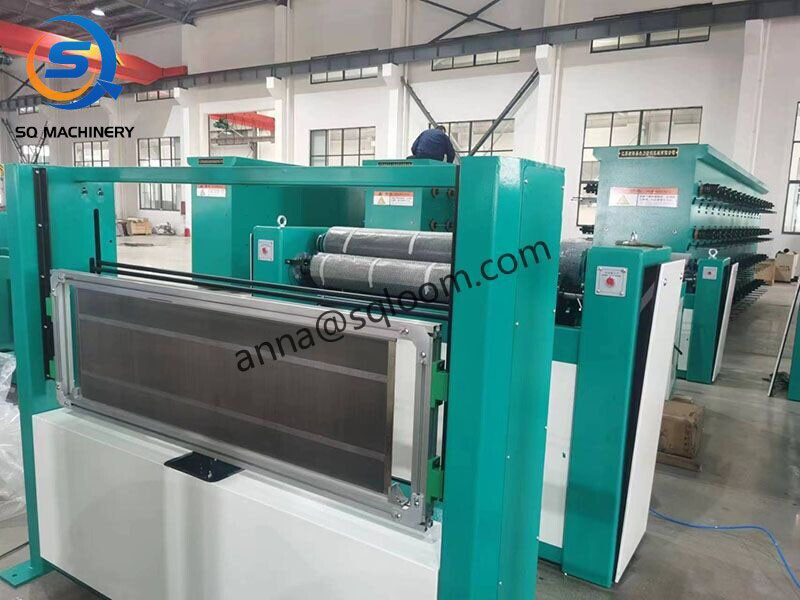

Monofilament yarn warping machine

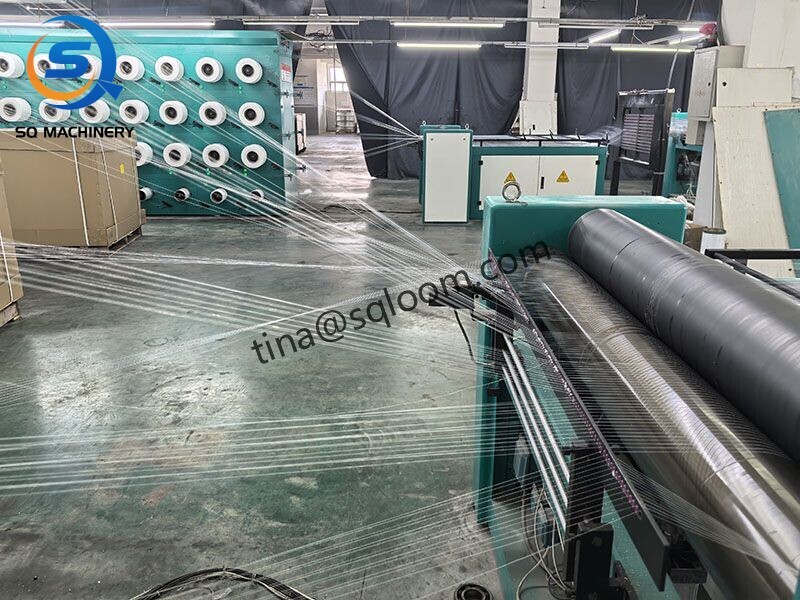

The machine is directly split filament (mother yarn) to single fiber and warp them one by one to the drum according a certain ends and strip width , then collectively unwinding to the beam , For water jet and rapier weaving, Reducing processes, improving work efficiency and reducing costs have better economic benefits. With novel design, compact structure and high degree of automation, it fills the gap in China.

Professional Sales Manager:Tina Qv +86 18560459341

Main Specification

Warping speed:0-500m/min(actural speed 300-500m/min)
Beaming speed : 0-200 m/min(actural speed 120-180m/min)

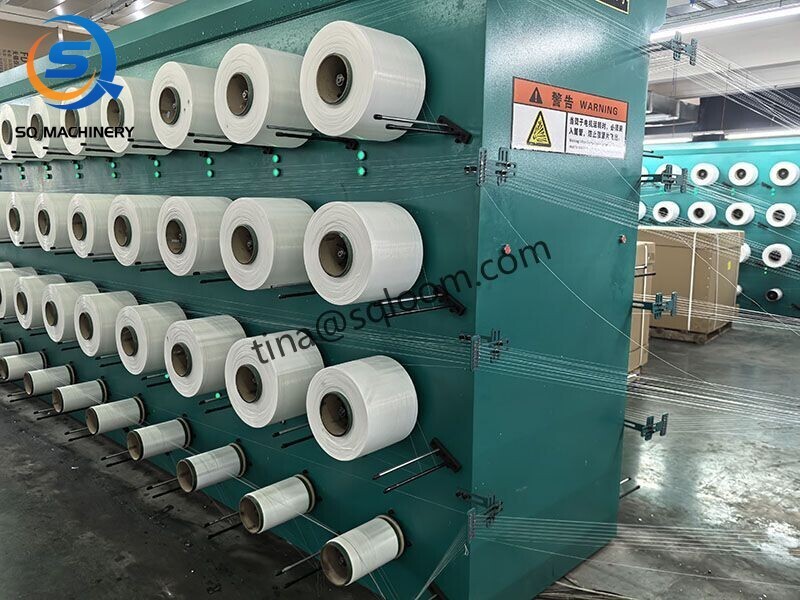

Bobbin number:120
Mother yarn variety: 20D-140D/8-12F  (Polyester or nylon)
Bobbin size: 400×170mm（ Max outside diameter× yarn height）
Drum : Fixed Angle，slope : 1:8, φ1000mm(degree7.1°)
Beam : φ800-1000mm×2800mm(confirmed by customer)
