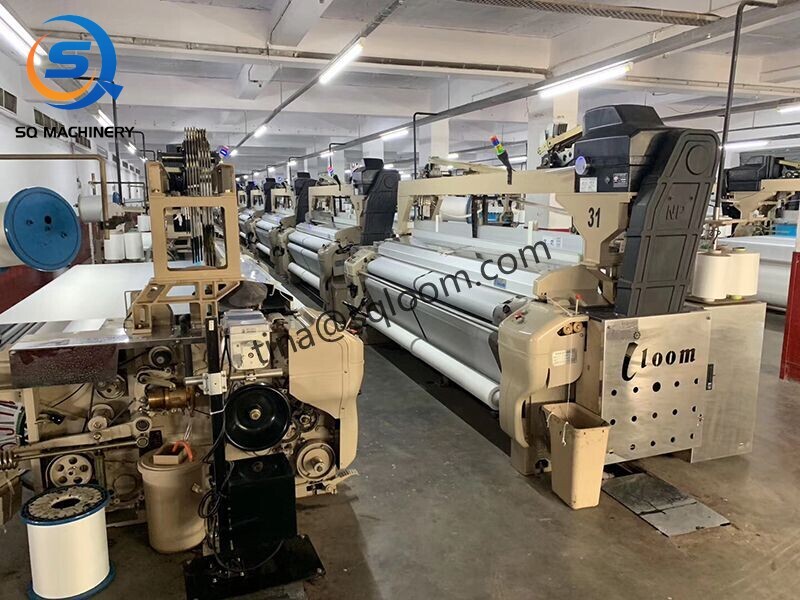

High speed Water jet loom machine SQ8100

Features

Same model with ZAX8100 water jet loom,high speed and heavy machine
Plain,Cam,dobby,Jacquard shedding for your choice
It can make all polyester fabric in high production

Product Details

Usage scope for water jet loom

filament 40~460dtex

The weft density range of general fabrics is 50-500 weft / 10cm, and that of compact fabrics can be as high as 600 weft / 10cm.

Fabric: peach skin suede, elastic cloth, Chunya textile, Taslon, Huayao, double-sided fabric (with large difference in front and back weave points), water washed velvet, Georgette, jacquard silk fabric, combed cotton, gaosibao, chiffon, corduroy, pull rod cloth, curtain cloth, double-layer twisted curtain cloth, Zhigong satin, imitation silk fabric, umbrella silk (ultra fine denier high-density fabric), etc.


water jet loom fabric (1).jpg

water jet loom fabric (2).jpg

water jet loom fabric (3).jpg

Main specification of new shuttleless water jet loom


reed width  (cm)190cm,210cm,230cm,260cm,280cm,300cm,340cm,360cm
Shedding motionTapped shedding-max 6pcs heald frame Cam shedding-max 12pcs heald frameDobby shedding-max 16pcs heald frameJacquard-no have heald frame(Hook number 1344,2688,5120,6144)
Heald frameNiupai or other brand
Weft feederSanhe or Xinliao or other brand
NozzleMDH,Japan
BearingNSK or FAG
Warp beamDia.800mm/1000mm  Single beam or double beam
Cloth rollerWind on loom/Wind on batching motion
Speed R.P.M190 cam @ 850RPM(Actural speed)  280 cam @700 R.P.M   Design speed @1000 RPM

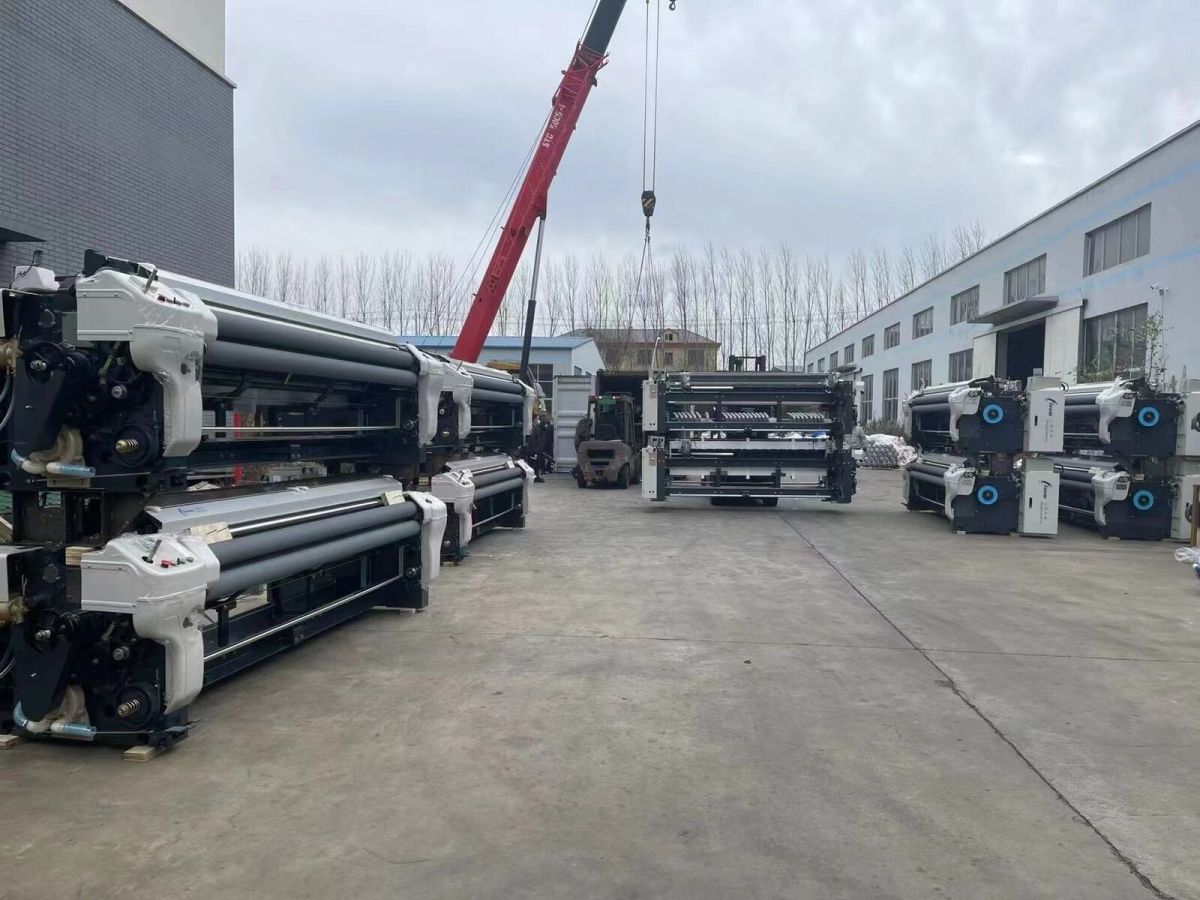

water jet looms.jpg


More details pls contact Tina Qv
