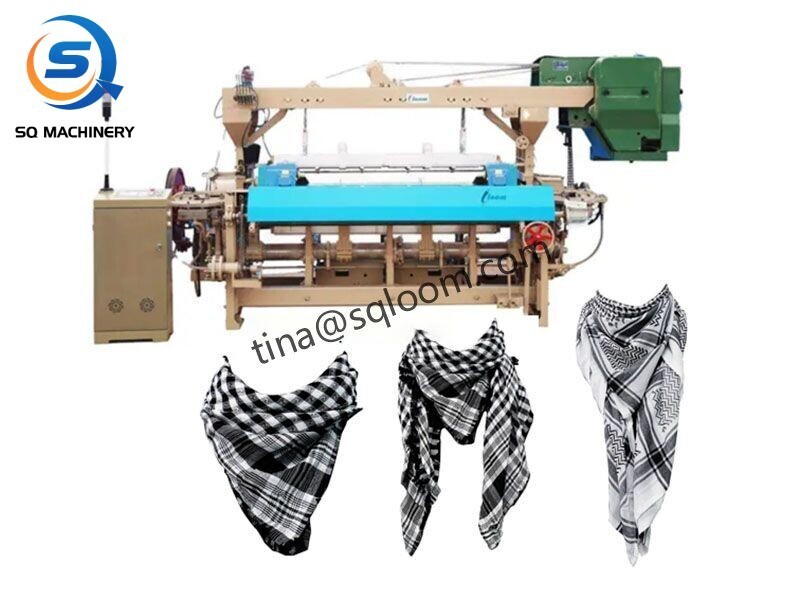

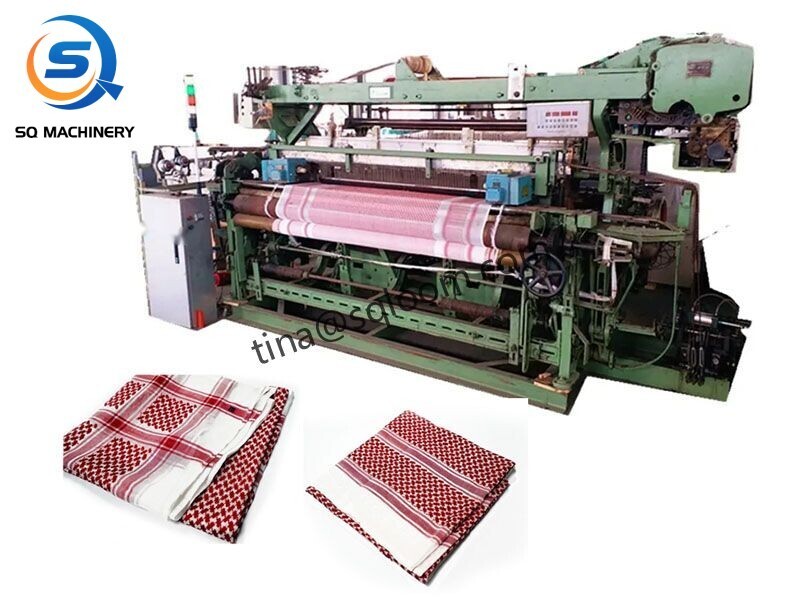

SQ798 FLEXIBLE FABRICA RAPIER LOOM

Main Specification

Reed width:150,180,200,230,260,280(cm)

Design speed: 180~230pm

Operation system:Micro-computer functional automatic control &operation system

Weft insertion:180-230 weftmin picked by left and right rapierband &head

Warp beam Dia.:Standard ground warp 600mm,pile warp 800mm

Cloth roller Dia.:Standard 300mm(500mm optional)

Weft accumulator:FDP electronic accumulator

Driving control:Rated 1.5~2.2kw main motor power,3-phase line,380v,50hz

Beat-up motior:Crank shaft weft insertion and beating-up

Lubrication:Electric circuit,Automatic centralized lubricating system for the loom,

enclosed type electronic oil pump centralized lubricating for dobby

Standard modularization design,LED displays working condition,low cost,easy overnaul

Weft selection:6-8 colors electronic weft selector

Pattern design:By CAD design software,files transfer by U-disk

Yam range:Spun yarns:500tex(1.2Ne)~5tex(120Ne).Filament yarns:10dte(9td )~1650dte(1500td)

Yam count:12-32S

Shedding motior:Looping motion

Let-off motion,Take-up motion

14-18 pieces heddle frame,electronic dobby with max.24 shafts automatic shedding type,can

match with big jacquard.

CNC servomotor cam looping,formed by reed movement.3~7 picks switching freely.

Loop height:0~14.5mm

Negative continuous and variable frequency electronic control let-off system,sensitive and

tension steady

Continuous gapless take-up

Sevage device:Mechanical selvage cutter,Leno selvage.Temple:ring type copper cylinder with pin

Machine drive

V-belt direct mechanical drive,brake by electro-magnetic clutch

Stop motion

Warp yarn:separate electric automatic warp stop motion;

Weft yarn:high-sensitivity piezoelectricity detector control automatic stop;

Stop display:4-colour multi-function indication lamps

Electronic control

Micro-computer functional automatic control system with memory card;big LCD in Chinese

and English showing working condition and all process data,e.g.speed ,shift/day output

data,etc,easy for instant adjustment parameter setting and programs making.

Size and weight:450*250*260cm32.0-2.5MTs
